Big Iron Flow Control Products | SKU:
PVRK2SPDR150STD4H1
61% off
Plug Valve Repair Kit, Major, FMC DR50-DR100-DR150 / SPM SP150, 2", STD Service, NOE
$293.575,00 ARS
$761.043,00
Unit price
/
Unavailable
Shipping calculated at checkout.
Lead Time: 1 Day
Plug Valve Repair Kit, Major, FMC DR50-DR100-DR150 / SPM SP150, 2", STD Service, NOE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Plug Valve Repair Kit, 2" FMC DR50-DR100-DR150 2" Fig. 1502 / SPM SP150, Std Service, Top Entry Major Kit, 15,000psi, 4140/HNBR, NOE
| SPECIFICATIONS | |
| Size: | 2 Inch |
| Pressure: | 15,000 PSI |
| Connections: | Fig. 1502 Hammer Union |
| Service: | Standard |
| Standard | AS PER API 6A |
| Product Specification Level: | PSL3 |
| Material Class: | AA - General Service |
| Temperature: | P+U (-20F to 250F) |
| Replaces Kits: | SPM 4L11982 |
| FMC 3208508 | |
| Compatible Valves: | SPM 1A14487 |
| SPM 2A27973 | |
| SPM 1A14487HB | |
| SPM 1A14487A | |
| SPM 1A24017 | |
| FMC 3247527 | |
| FMC 3269545 | |
| FMC 3248705 | |

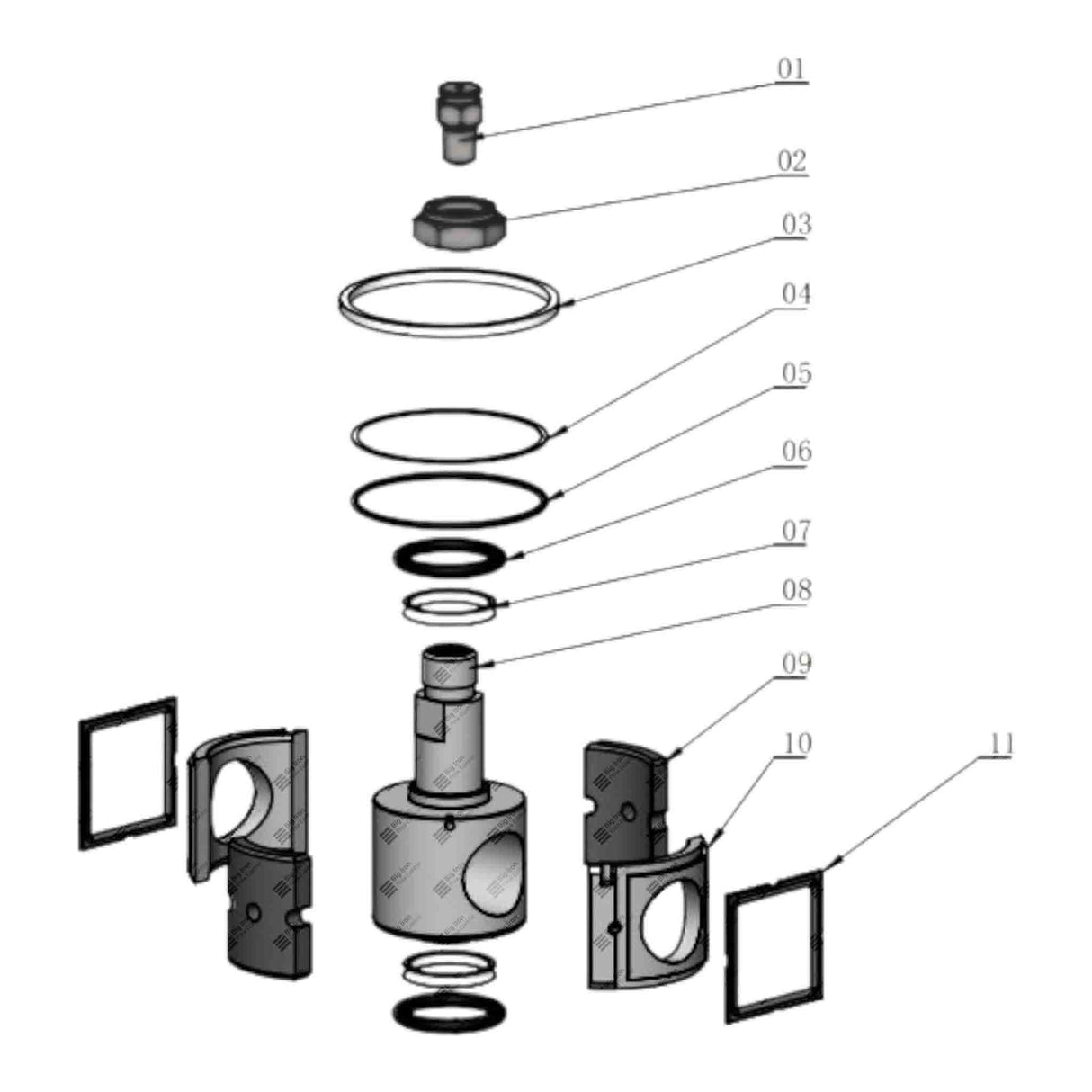

| BILL OF MATERIALS | |||||
| Item | QTY | Description | Material | SPM Part No. | FMC Part No. |
| 1 | 1 | Grease Fitting (3/8in MNPT) | AISI 1045(C45) | P10064 | 3226457 |
| 2 | 1 | Hex Lock Nut | AISI 1045(C45) / Nylon | P11699 | 3226656 |
| 3 | 1 | Felt Gasket | Wool Fiber | P11698 | 3235174 |
| 4 | 1 | Back-up Ring, Plug Cap | PTFE | P12257 | 3255223 |
| 5 | 1 | O-Ring, Plug Cap | HNBR | P11697 | 3226706 |
| 6 | 2 | O-Ring, Plug Seal | HNBR | 4A11979 | 3217008 |
| 7 | 2 | O-Ring Backup, Plug Seal | PEEK | 4A11979 | 3217010 |
| 8 | 1 | Plug | AISI 4140 | 2P14486 | 3261405 |
| 9 | 2 | Side Segments | HTPA-NYLON | 3P20338 | 3261457 |
| 10 | 2 | Seal Segments | AISI 4715 | 3P11692 | 3217007 |
| 11 | 2 | Segment Seal Rings | HNBR | 3P11693 | 3217011 |

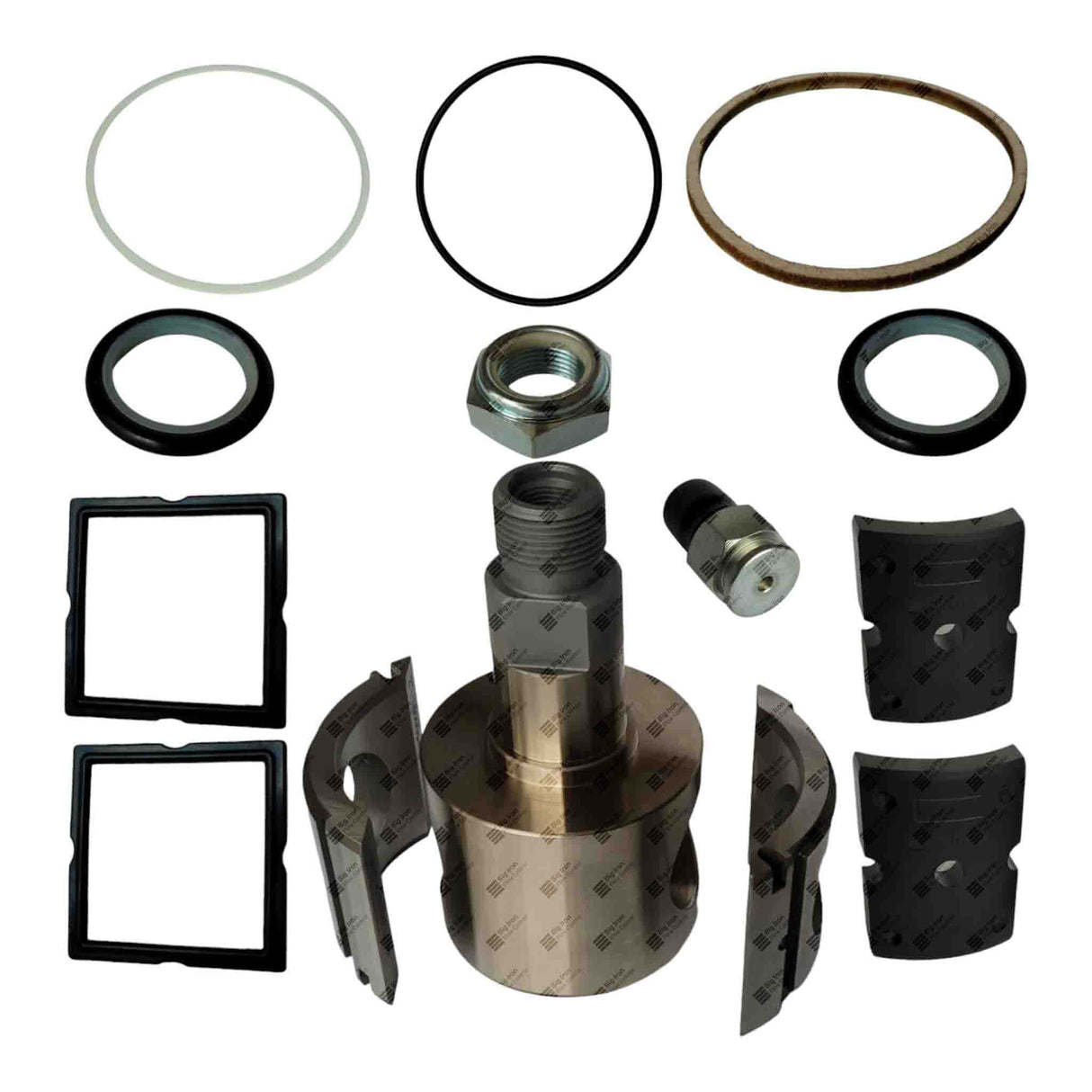

INCLUDES: Plug, Seal Segments, Seals, Side Segments, Grease Fitting, O-Ring, Plug Seals, Backup Ring, Felt gasket, Hex Lock Nut
SPM SP150 Part# 4L11982 (KIT/PARTS/PV/2.00)
FMC DR150 Part# 3208508 (2" Fig 1502 Weco Plug Valve Redress Kit - Replacement Parts)
*NON OEM KIT
